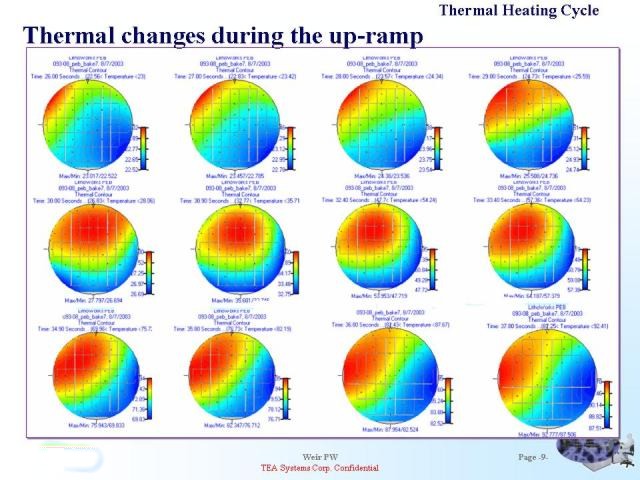

Galleries can be constructed in matrix form as shown or in one plot per window.
Finding the proper reaction variables can be challenging. However the first step is to properly align the two data sets.
Thermal energy is (temperature * time) or area under the curve that is above the activation temperature.
This graph plots the range in temperature at any point in the thermal cycle. Note that the wafer never settled into a stable range at the high temperature, shown at 119 seconds to still exhibit a 1C range. Also notice the onset of reaching the chill plate resulted in an initial jump in range.
Graphic also describes the rise/fall portions of the cycle.
Graphic shows the response at each thermal probe point with respect to the average across the wafer. Each probe exhibits a separate (Delta-Temp) vs time curve. Some areas exhibit a lag in heating.
A point is the thermal cycle curve, upper right, can be selected with the mouse and shown on the curve of each probe.
