Post Exposure Bake

Perhaps the most critical control element for exposures at 193 nm and below is the Post Exposure Bake (PEB) cycle. Bake temperature is a well known variable with sensitivity varying at more than 3 nm for each degree centigrade of variation across the wafer. However what are the real control variables in the bake and what critical device elements are most strongly influenced?

Arrhenius’s Law states that increasing the temperature frequently causes a marked increase in the rate of a reaction and that reactions exhibit a threshold initiation temperature. Thermal uniformity, flow and hysteresis on the plate often prove to be more a factor in feature definition than the target temperature.

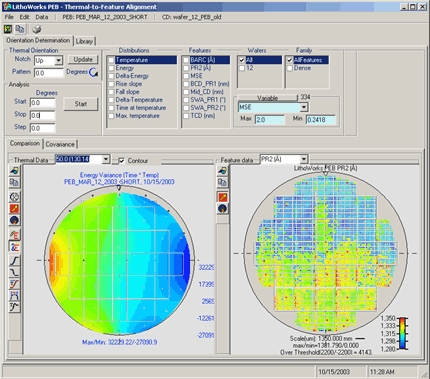

LithoWorks PEB is the only software capable of importing both thermal-sensor and critical feature metrology. Align and correlate individual features or derived variants such as rise-time, energy delivered and thermal flow to CD, Side-wall-angle, film thickness, etc.

Select a product solution according to your needs below or directly click on a product name on the lower-right for more information.



By Solution

Products

bullet

Weir PW
Process window, metrology and spatial feature modeling.

bullet

Weir PSFM
Focus analysis from commercial patterns and programs.



bullet

Weir DM / Weir DMA
Trend charts and automated analyses of raw or modeled data.



bullet

Vector Raptor
Overlay and Registration for Double Patterning



bullet

LithoWorks PEB
Thermal wafer analysis PLUS correlation to feature profile.
